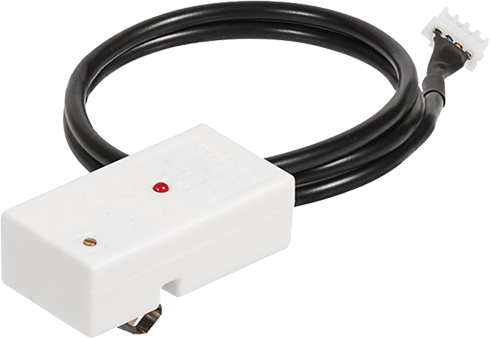

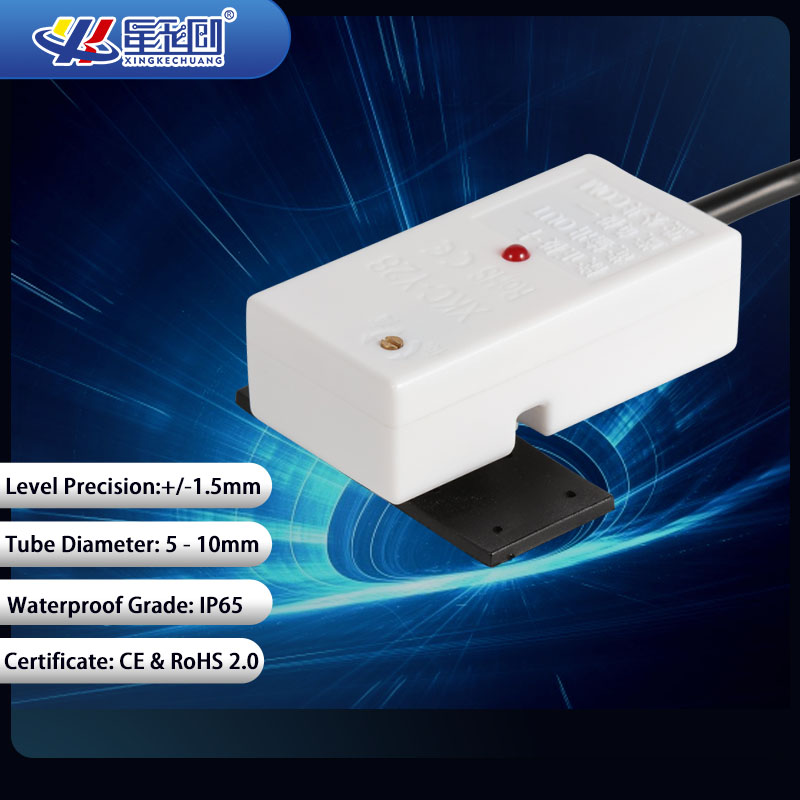

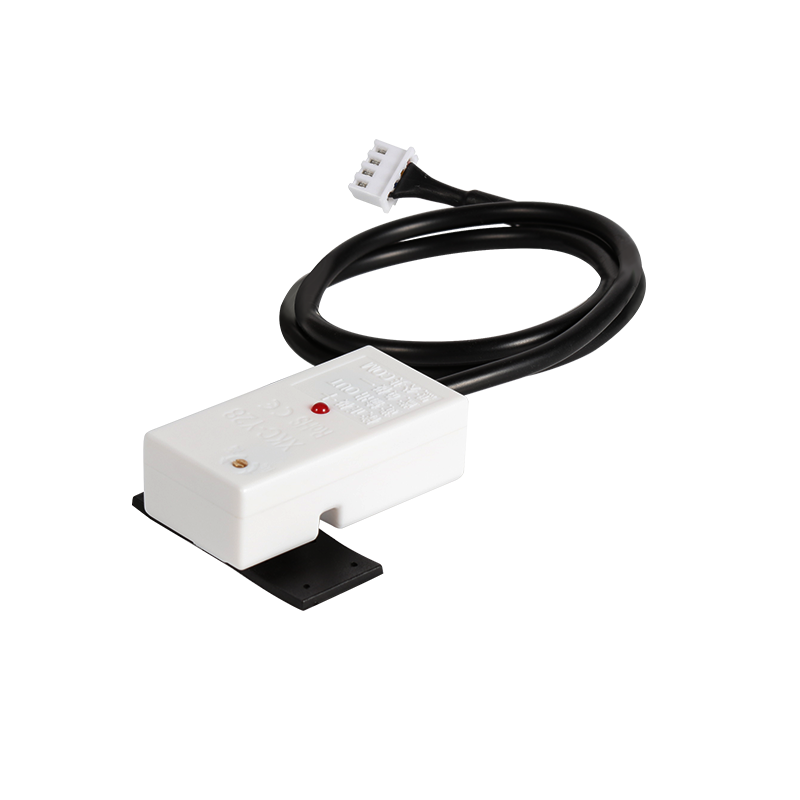

The induction sheet can be bent for easy fixing and is compatible with pipes of various sizes
Suitable for all kinds of pipes and flat containers

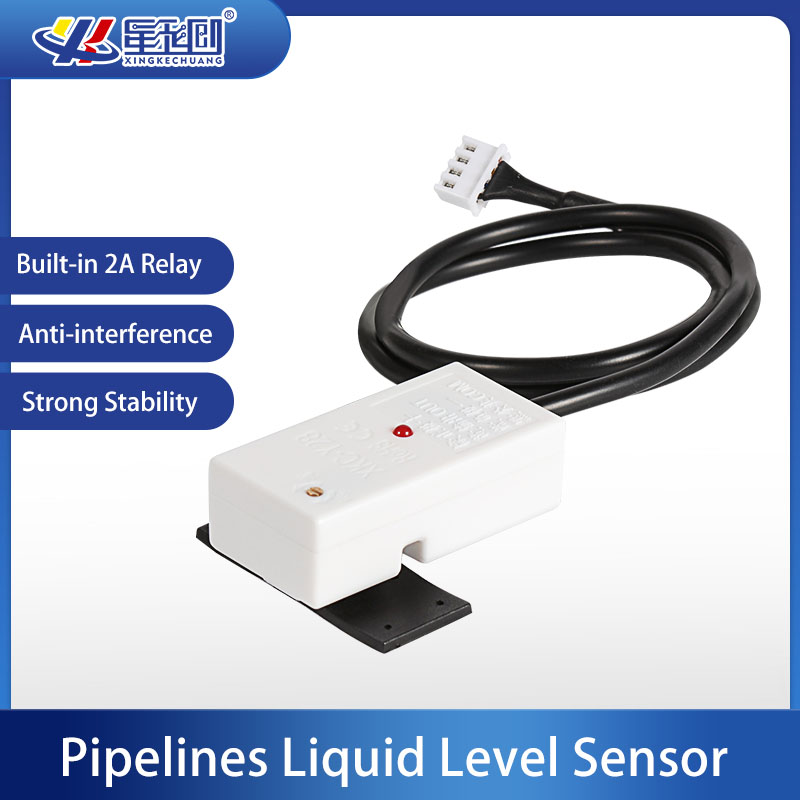

Built-in 2A relay can directly drive the load, RS485 communication
Power supply DC5V, 12V, 24V, normally open and normally closed output mode optional
1. XKC-Y28-NO/NC/RS485 sensor is suitable for non-metallic pipes (pipe outer diameter D≥ 11MM) or flat containers without direct contact with liquids, and will not be corroded by corrosive liquids such as strong acids and alkalis. Not affected by scale or other sundries, it can detect whether there is liquid inside the container or pipeline.
2. Intelligent liquid level reference adjustment and liquid level memory function, liquid level status display mode, can realize multi-point series connection.
3. The detection is accurate and stable, and can detect the boiling water level.
4. Pure electronic circuit structure, non-mechanical working mode, stable performance and long life.
5. High stability, high sensitivity, strong anti-interference ability, free from external electromagnetic interference, special treatment for power frequency interference and common mode interference, to be compatible with all 5V, 12V, 24V power adapters on the market.
6. Strong compatibility, penetrating various non-metallic containers and pipes, such as plastic, glass, ceramics and other containers, the thickness of the induction pipe wall can reach 20mm; it is suitable for various curved, curved, cylindrical containers or pipes Liquid level detection.
7.The voltage can be selected (5V, 12V, 24V), suitable for connecting various circuits and product applications.
item name | specifications | |||
XKC MPN | XKC-Y28-NC | XKC-Y28-NO | XKC-Y28-RS485 | |
input dc volatge (Vin) | 5V、 12V、24V | 5V、 12V、24V | 24V (or customed 12V) | |
output method | normally closed | normally open | communication | |
consumption current | 13mA | |||
output voltage | DC24V/2A | |||
response time | 500mS | |||
working temperature | -20~105℃ | |||
sensitivity | pipe outer diameter D(mm) | sensed pipe thickness L(mm) | ||
D ≥ 100 | 20 ± 3 | |||
100>D ≥80 | 15 ± 2 | |||
80>D ≥60 | 12 ± 1.5 | |||
60>D ≥40 | 7 ± 1.0 | |||
40>D ≥ 30 | 5 ± 1.0 | |||
30>D ≥20 | 3 ± 1.0 | |||
20>D ≥ 10 | 1.5 ± 0.5 | |||
applicable pipe OD range | ≥ 11mm | |||
level accuracy | ± 1.5mm | |||
humidity | 5%~100% | |||
cable | 500MM (±10MM) (customed for bulk orders) | |||

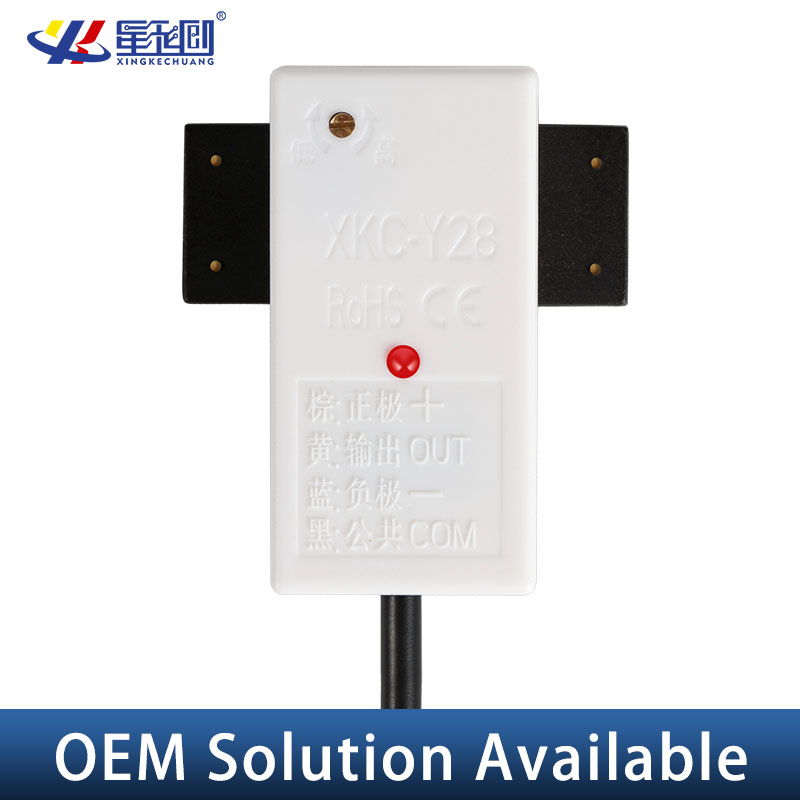

wiring definition | brown (power+) 、yellow (signal output) blue (power-)、black ( COM ) | |||
material | PC-V0 fireproof | |||
waterproof | IP67 | |||
safety certificate | CE | |||
environment certificate | ROHS2.0 | |||
