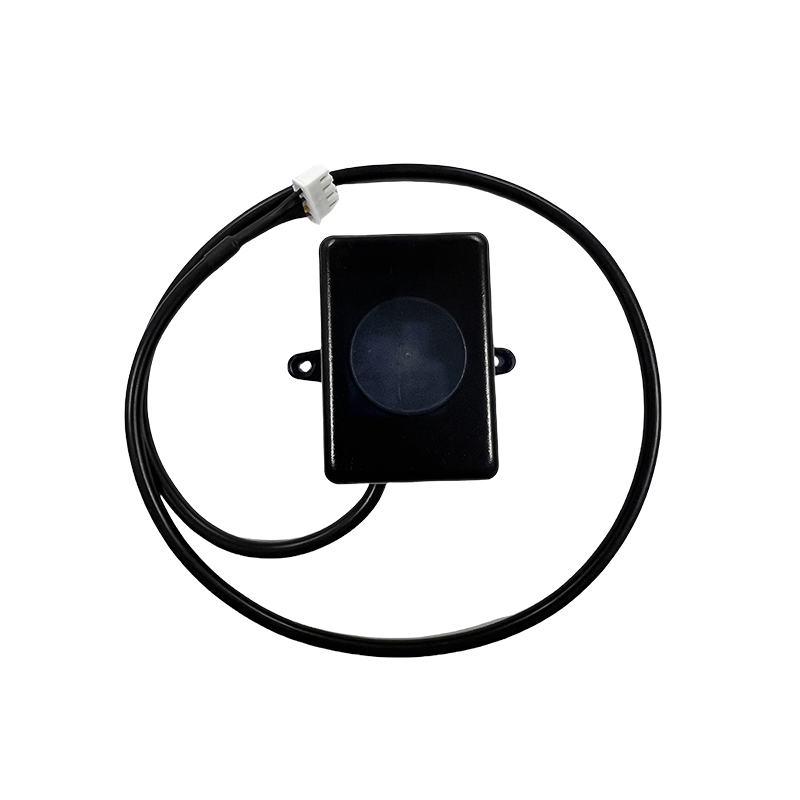

LD002 60G Millimeter Wave Static Human Body Sensor

  • Static/Micro motion Human Presence Induction

  • 57-64GHz ISM frequency band, certified by FCC and CE spectrum regulations

  • Has good environmental adaptability, and the sensing effect is not affected by surrounding environme

  • Can pass through non-metallic materials such as glass, plastic, ceramics, acrylic, rubber, wood, etc

Service hotline
Whatsapp: +86 18138228327

Product Details

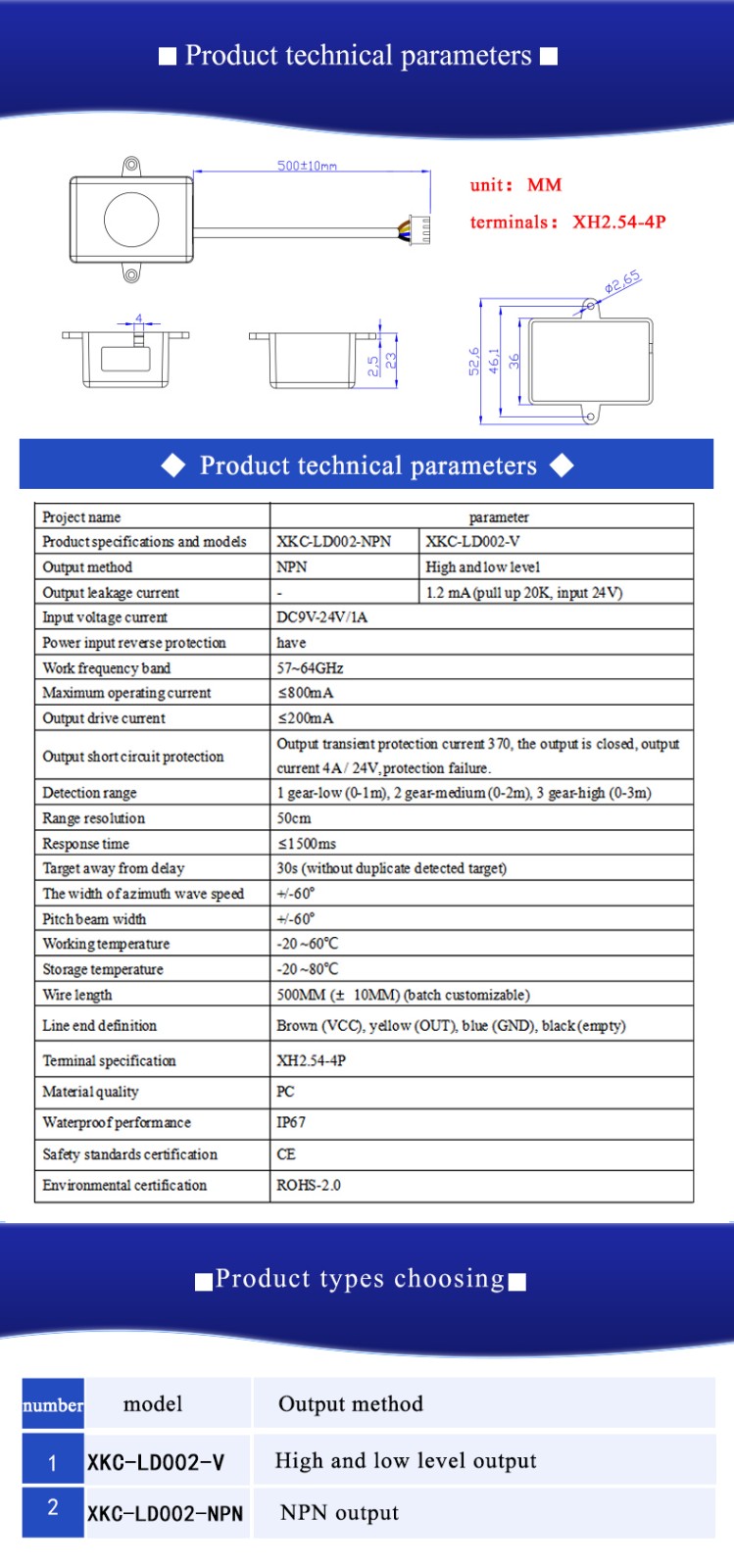

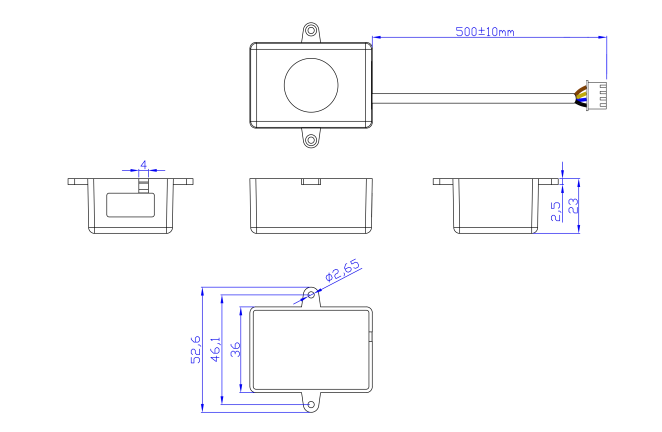

Technical Parameters
Technical Parameters
User's Guide

1Product overview XKC-LD002 is mainly used in indoor scenes to perceive whether there is movement or micro human body in the area, and output the detection results in real time. The maximum induction distance can reach 3 meters (the detection distance is related to the sensor installation direction), and the distance resolution is 5cm. Can be widely used in various scenarios of AIoT, often used in human body induction light control, advertising screen and other devices of human body induction wake up, life safety protection, intelligent home appliances, intelligent security, corridor detection and so on.

2Product features 1. In addition to the movement of the human body induction sensitive, for the traditional scheme can not identify the micro human body can also be sensitive induction; 2. Have good environmental adaptability, the induction effect is not affected by the temperature, brightness, humidity and light fluctuations and other surrounding environment; 3. Not easy to be affected by dirt, dust and other cover interference; 4. Can pass through the glass, plastic, ceramic, acrylic, rubber, wood board and other non-metallic materials; 5. The maximum induction distance is up to 3 meters; 6. Support the hanging roof, hanging the wall and other installation methods; 7. 57~64GHz ISM frequency band, can pass the FCC and CE spectrum regulatory certification;

3Operational principle The XKC-LD002 is a highly sensitive 57~64GHz human presence state sensor. Its working principle is to use FMCW frequency modulation continuous wave to detect the human body target in the set space. Combined with radar signal processing and accurate human body sensing algorithm, it can realize the highly sensitive human existence state sensing, can identify the human body in the motion and micro-motion state, and can calculate the distance of the target and other auxiliary information.
