Y29D card tube liquid level sensor

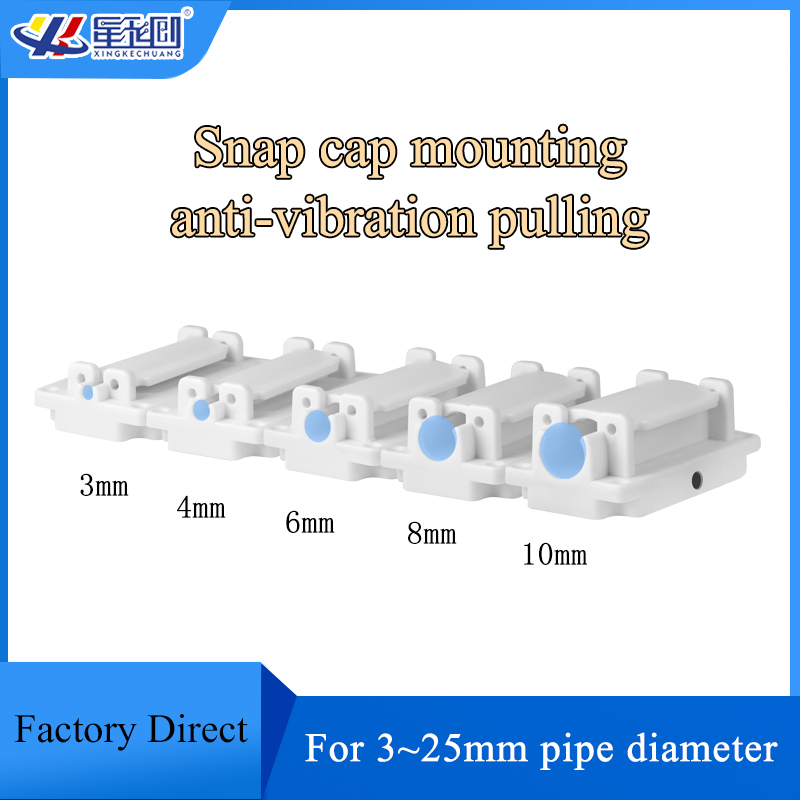

  • Card cover design solves the problem of pipe detachment caused by equipment vibration, pulling, etc

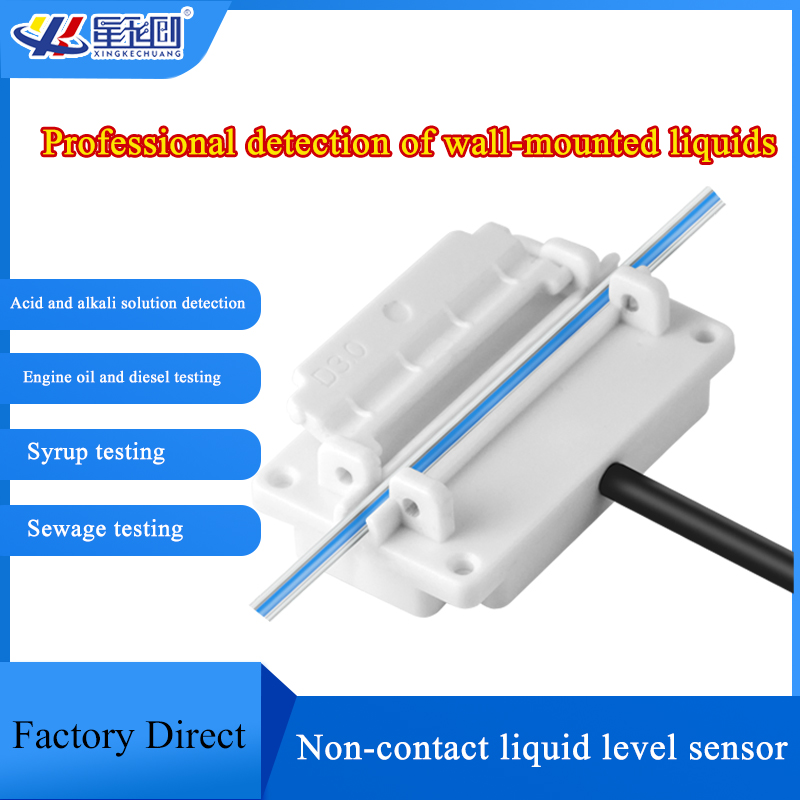

  • A small amount of wall hanging liquid can be detected

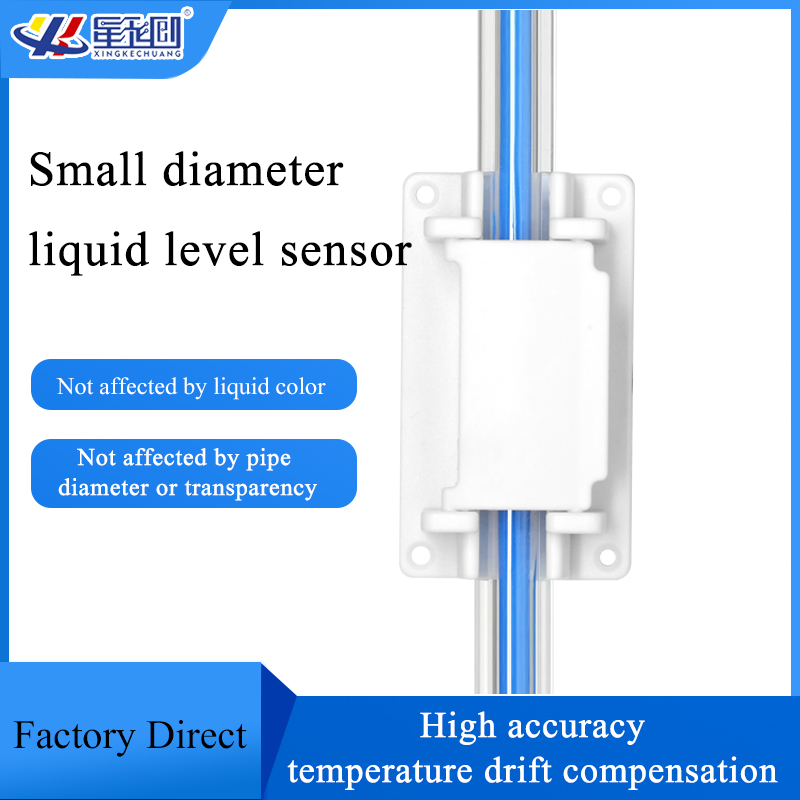

  • Environmental temperature drift compensation, temperature changes will not affect sensitivity, with

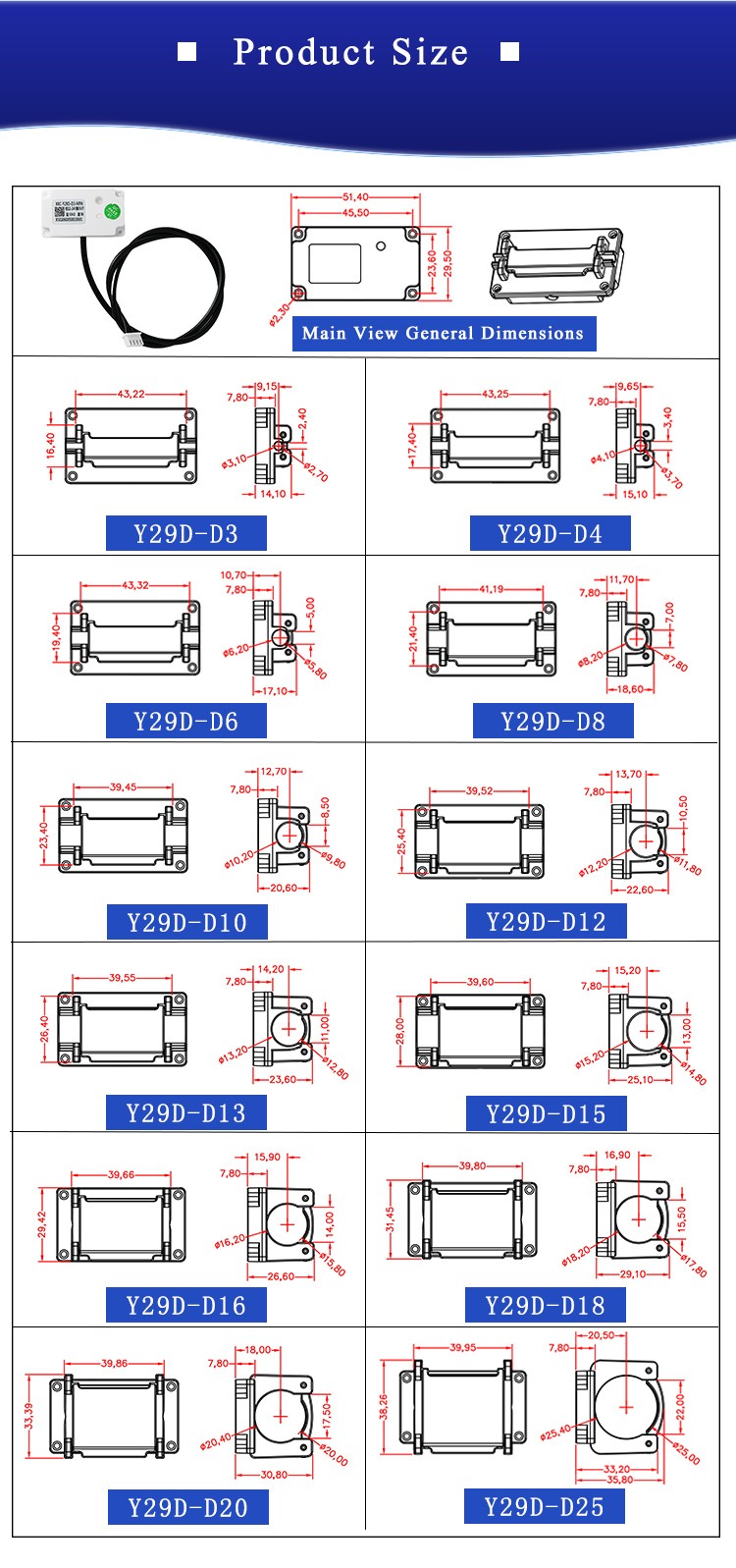

  • Multiple pipe diameter options: D3 D4 D6 D8 D10 D12 D14 D16 D18 D20 D22 D25

Service hotline
Whatsapp: +86 18138228327

Product Details

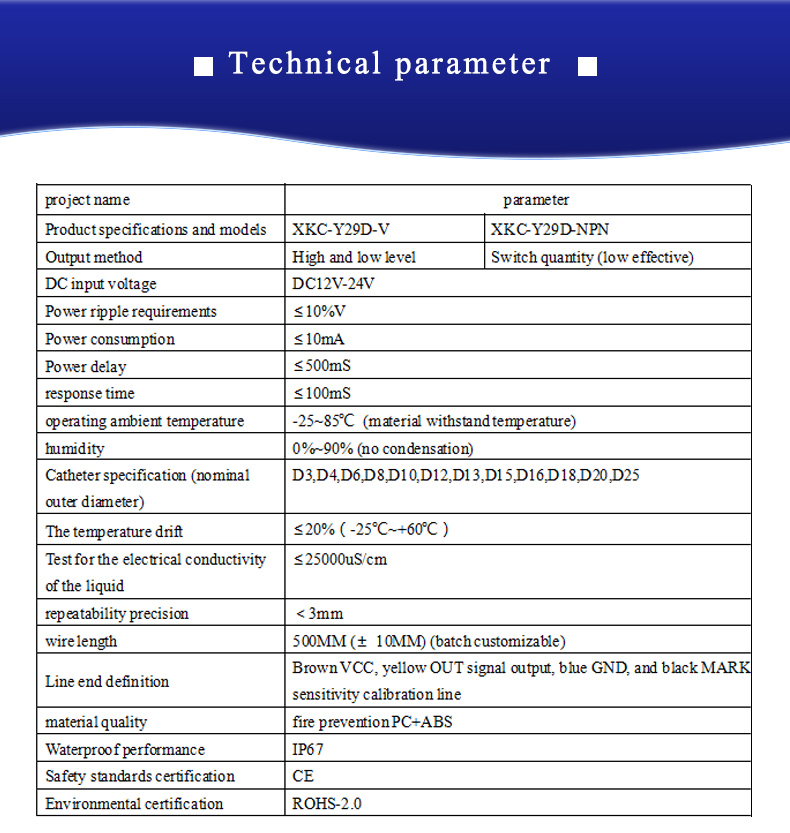

Technical Parameters
Technical Parameters
User's Guide

1. Summary Intelligent non-contact pipeline liquid level sensor = using advanced signal processing technology and high-speed signal processing chip, specifically for infusion tubes, industrial tues and other liquid level detection needs. Intelligent non-contact pipeline liquid level sensor can output high and low level signal at the same time, which can meet the needs of various occasions. Intelligent non-contact pipe liquid level sensor uses the induction capacitor of water to detect the presence of liquid, In the absence of a liquid proximity sensor, On the sensor due to the presence of the distributed capacitance, So the sensor has a certain static capacitance, As the liquid level slowly approaches the sensor, The parasitic capacitance of the liquid will be coupled to this static capacitor, Increase the capacitance value of the sensor, The changing capacitance signal is then input to the control IC for signal conversion, Convert the changing capacitance into some variation of the electrical signal, By a certain algorithm to detect and determine the extent of this change, When this change exceeds a certain threshold, the liquid level is considered to reach the induction point.

2. Applied range Specialized for a variety of pipeline size level detection application industries, such as: medical equipment, medical infusion, biological drug liquid detection, scientific research and teaching equipment, intelligent coffee machine, intelligent water dispenser, intelligent electrical appliances, industrial tubing level detection, home decoration intelligent water supply, etc.
